KLP-10-S
KLP
60
110V-240V /50Hz-60Hz
| Quantity: | |
|---|---|
Small Vitamin Gummy Bears Making Machine Jelly Candy Beans Making Machine
| Product Name | table top depositor |
| Model Name | KLP-10-S |
Depositing Times | 30-60 times/min |
Depositing Weight Servo motor | 1-4.5g/shot 2 Sets |
Productivity | 2-4molds/min, 20-60kg/h |
Hopper Capacity | 12 Liters by water |
Input | 110-240V AC 50-60HZ |
Total Power | 3 kw |
Material | SSS304 |
Max. Temperature Heating Method | 130°C Electric Heating |
Nozzle/Piston | 10pcs |
Nozzle spacing | 35mm |
Machine Size (L*W*H) | 620*550*650mm 60kg |
Packing Info | 700*700*870mm 74kg |
Introduction

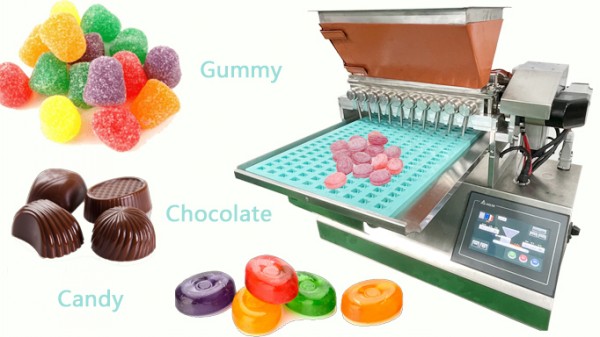

This type of small table-top confectionery depositor is suitable for chocolate, caramel, jelly, hard candy soft candy and many more similar syrup depositing. The adjustable nozzles make it suitable for molds with different layouts.
Features
1. This depositor adopts a compact and space saving table top design

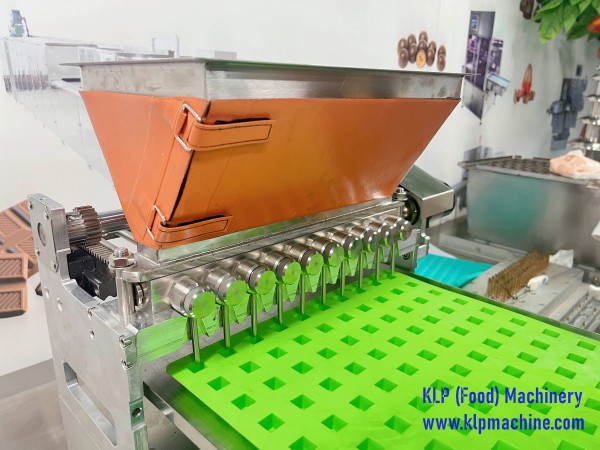

2. 10 adjustable and removable nozzles
3. 2 Servo motors+PLC controlled depositing with HMI
4. Double heating systems for hopper and nozzles
5. One mold holding tray for silicone and other soft molds
6. Suitable for chocolate, caramel, jelly, hard candy, soft candy and many more similar syrup
Operation Process
① Plug in and switch On
② Select language
③ Set parameters according to the mold and save it as a receipe
④ Start Heating to heat the machine up
⑤ Place the mold on the belt and align it with the nozzles
⑥ Hit the Start button adjust the depositing amount and spacing
More details of gummy machine
We also offer more than 100 different kind of silicon molds for making gummy candy .
Contact us
If you want to know more informations about our gummy depositor ,just be free to get contact with us ,
your inquiry will be answered in 24 hours.
