KLP-F3000
KLP
450
220V 50Hz or 3N 380V 50Hz
| Quantity: | |
|---|---|

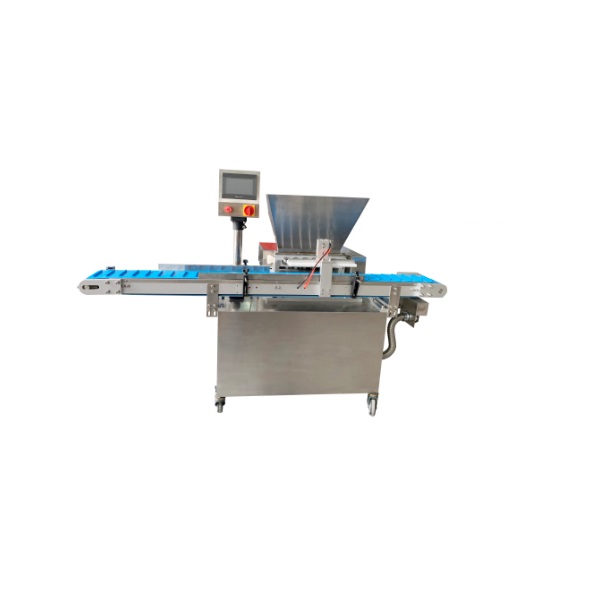

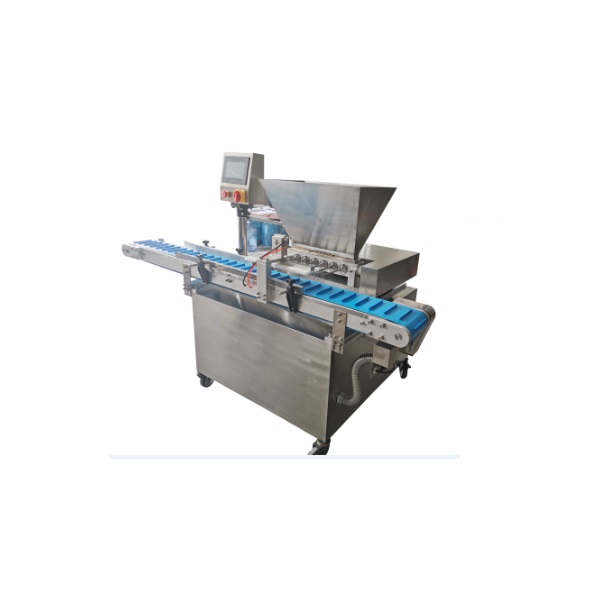

Automatic 6 Heads Croissant Bread Filling Machine Croissant Injection Machine Cream Chocolate Honey Bread Core Jam Filling Machine
Parameter
| Product Name | Automatic 6 Heads Croissant Bread filling Machine | ||
Model Number | KLP-F3000 | ||
Voltage | 220V or 380V | ||
Power | 1.5 kw | ||
Max. production capability | 4000pcs/hour (be up to your bread size and filling weight) | ||
Injection needles | 4-6 (or custom made ) | ||
Injecting amount | 10-80g (or custom made) | ||
| Conveyor length | 3000mm (or custom made ) | ||
Max. bread length | 400mm | ||
Max. bread width | 100mm | ||
Hopper capacity | 40L (or custom mde ) | ||
Machine size | 3000×1200×1450mm | ||
Machine Weight | 450kg |
Features
1. Applicable to bread, cake, puffs and other products with side injecting requirements
2. Continous injecting, can do a dot injecting and strip injecting.
3. Replace man work, reduce labor intensity, fast speed and high efficiency.
4. Can be used to inject a variety of fillings such as fresh cream, jam, custard,red bean paste, chocolate, butter etc.
5. Reasonable design, convenient for cleaning and disassembly.
6. The machine shell is made of stainless steel 304. The mold material is food grade aluminum.
7.Can adjust the filling weight( 10-80g, each error 0.5g) according to bread and cake size.
8. It also can customize the injection die according to the bread or cake shape.
About Chengdu KLP (Food) Machinery
Chengdu KLP (Food) Machinery has focused on food machinery more than 10 years.We can offer different kind of food machinery like bakery equipment ,fast food equipment ,food process equipment and refrigeration equipment.
