KLP-4P
1000kgs
380V
| Quantity: | |
|---|---|

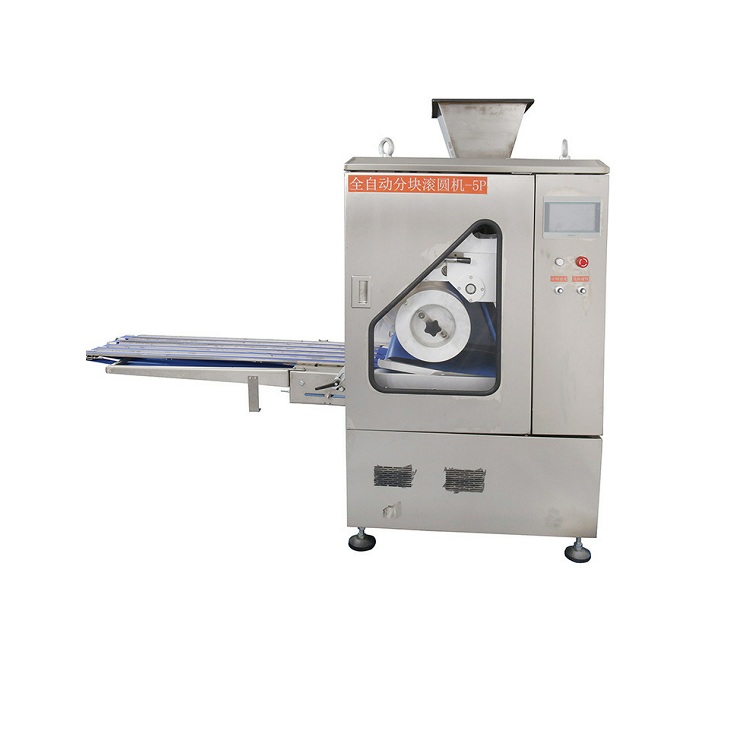

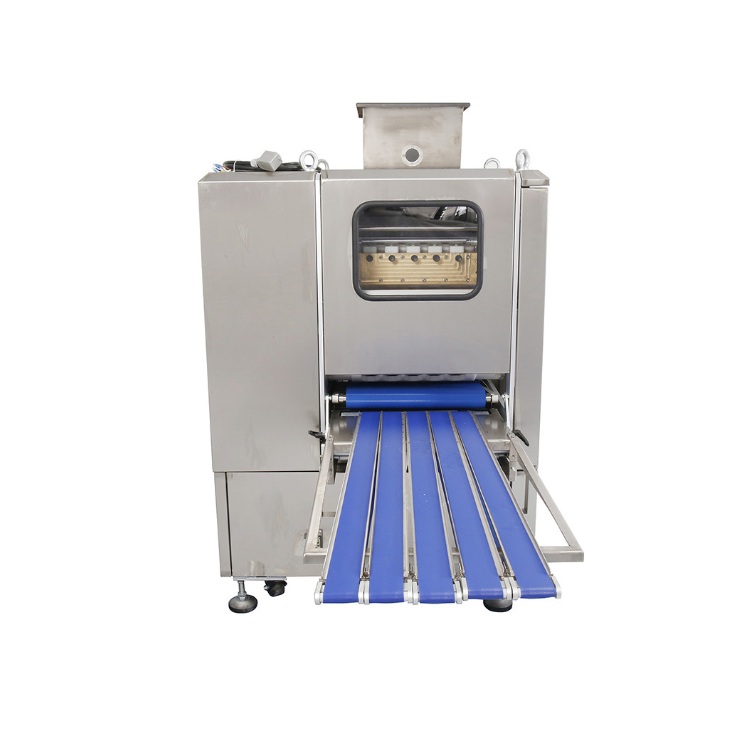

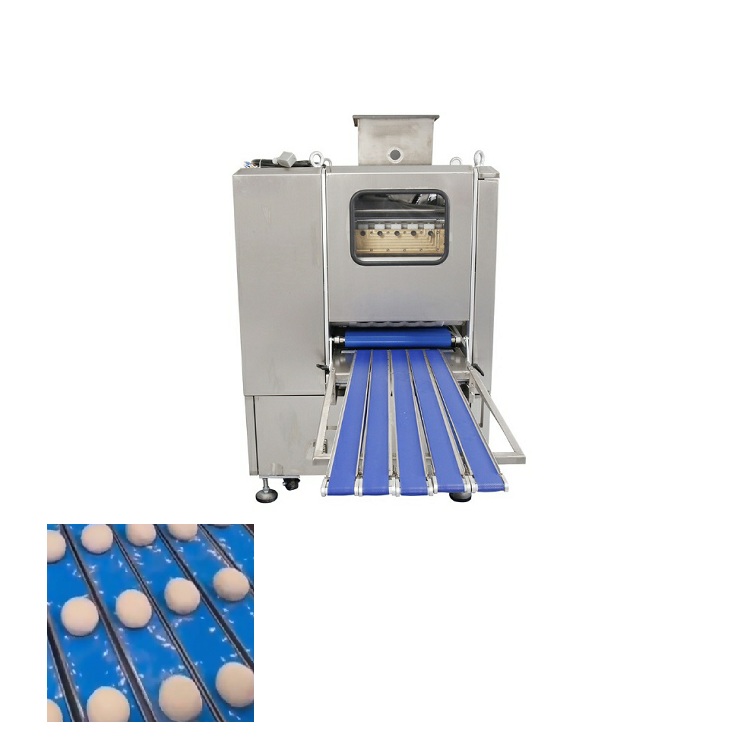

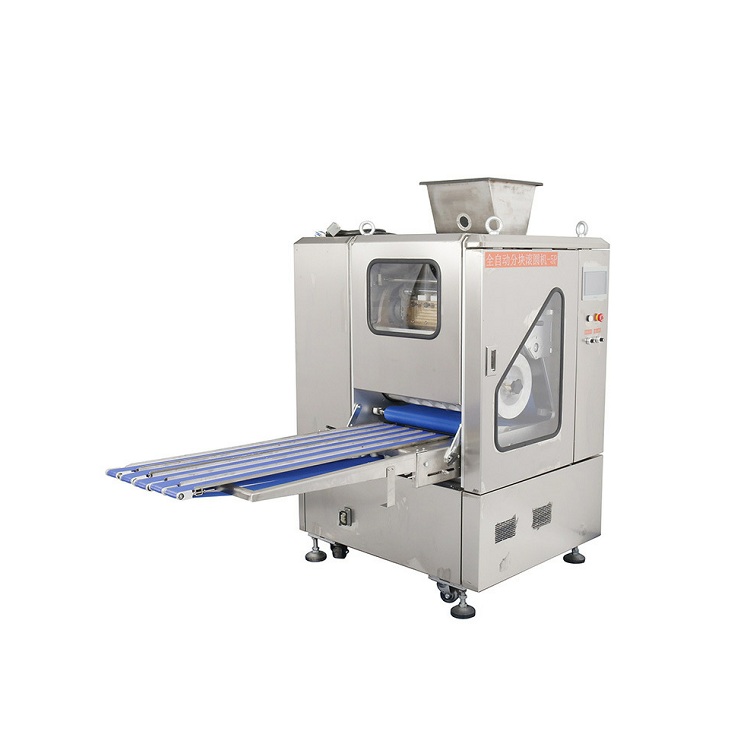

Full Automatic 4 Lines 5 Lines 6 Lines Dough Divider Rounder Machine
Paramter
| Product Name | automatic 4 lines dough divider and rounder machine | automatic 5 lines dough divider and rounder machine | automatic 6 lines dough divider and rounder machine |
| Model | KLP-4P | KLP-5P | KLP-6P |
| Capacity | 8000 pcs/h | 10000 pcs/h | 12000 pcs/h |
| Dividing and rounding dough weight range (need change molds) | mold 1:30-50g mold 2:50-80g mold 3:80-100g mold 4:100-150g mold 5:160-200g mold 6:200-220g | mold 1:30-50g mold 2:50-80g mold 3:80-100g mold 4:100-120g | mold 1:30-50g mold 2:50-80g mold 3:80-100g mold 4:100-120g |
| Voltage | 3 phaes 380V 50Hz | 3 phaes 380V 50Hz | 3 phaes 380V 50Hz |
| Power | 4.5kw | 4.5kw | 4.5kw |
| Machine size | 2000*1140*1650mm | 2000*1140*1650mm | 2000*1140*1650mm |
| Machine weight | 1000kgs | 1000kgs | 1000kgs |
| Packing size | 2160*1140*1650mm | 2160*1140*1650mm | 2160*1140*1650mm |
| Gross weight | 1100kgs | 1100kgs | 1100kgs |
Introduction
The dough dividing and rounding machine is a common pastry processing equipment. Its main function is to pass the mixed dough through the divider, divide it into equal small pieces, and then easily roll the dough into a round shape through the rounding mold to facilitate the production of various pastries.
1. The fully automatic dough dividing and rounding machine has the characteristics of reasonable structure, convenient operation, large output, accurate dough weight, and good rounding effect. It is the equipment that food manufacturers want to have.
2. The circuit adopts PLC system programming control, and the operation panel is intuitive and simple.
3. The block adopts a high-performance hydraulic system, which has the advantages of smooth transmission process and uniform pushing pressure,
ensuring the accurate dough weight.
4. All the dough contact parts are treated with Teflon anti-sticking.
Feature
1. The dough produced by this machine is of accurate weight and has good rounding effect. The weight and size of the dough can be adjusted as needed.
2. The dough production speed and rounding speed are both controlled by frequency converters, which are easy to adjust.
3. The hydraulic system uses imported overflow valves to precisely control the pressure.
4. The machine is equipped with an emergency stop button, which can immediately stop the machine in an emergency to ensure the safety of personnel and the machine.
Full Automatic 4 Lines 5 Lines 6 Lines Dough Divider Rounder Machine
Paramter
| Product Name | automatic 4 lines dough divider and rounder machine | automatic 5 lines dough divider and rounder machine | automatic 6 lines dough divider and rounder machine |
| Model | KLP-4P | KLP-5P | KLP-6P |
| Capacity | 8000 pcs/h | 10000 pcs/h | 12000 pcs/h |
| Dividing and rounding dough weight range (need change molds) | mold 1:30-50g mold 2:50-80g mold 3:80-100g mold 4:100-150g mold 5:160-200g mold 6:200-220g | mold 1:30-50g mold 2:50-80g mold 3:80-100g mold 4:100-120g | mold 1:30-50g mold 2:50-80g mold 3:80-100g mold 4:100-120g |
| Voltage | 3 phaes 380V 50Hz | 3 phaes 380V 50Hz | 3 phaes 380V 50Hz |
| Power | 4.5kw | 4.5kw | 4.5kw |
| Machine size | 2000*1140*1650mm | 2000*1140*1650mm | 2000*1140*1650mm |
| Machine weight | 1000kgs | 1000kgs | 1000kgs |
| Packing size | 2160*1140*1650mm | 2160*1140*1650mm | 2160*1140*1650mm |
| Gross weight | 1100kgs | 1100kgs | 1100kgs |
Introduction
The dough dividing and rounding machine is a common pastry processing equipment. Its main function is to pass the mixed dough through the divider, divide it into equal small pieces, and then easily roll the dough into a round shape through the rounding mold to facilitate the production of various pastries.
1. The fully automatic dough dividing and rounding machine has the characteristics of reasonable structure, convenient operation, large output, accurate dough weight, and good rounding effect. It is the equipment that food manufacturers want to have.
2. The circuit adopts PLC system programming control, and the operation panel is intuitive and simple.
3. The block adopts a high-performance hydraulic system, which has the advantages of smooth transmission process and uniform pushing pressure,
ensuring the accurate dough weight.
4. All the dough contact parts are treated with Teflon anti-sticking.
Feature
1. The dough produced by this machine is of accurate weight and has good rounding effect. The weight and size of the dough can be adjusted as needed.
2. The dough production speed and rounding speed are both controlled by frequency converters, which are easy to adjust.
3. The hydraulic system uses imported overflow valves to precisely control the pressure.
4. The machine is equipped with an emergency stop button, which can immediately stop the machine in an emergency to ensure the safety of personnel and the machine.
